TPS-DAP-T
Part Number:
TPS-DAP-T
Product Type:
3 Way Direct Acting Pilot Solenoid Valve
Pressure Type:
Water / Irrigation Media
Pressure Range:
0 to 10 bar
Process Connection:
Screwed (BSPT / NPT)
Electrical Connection:
Solenoid
Body Material:
Nylon GF
Size:
1/8"
Seal Type:
Nitrile
Temperature:
Media temp: 60°C; ambient temp: -10°C to 50°C
Voltage:
12V DC, 24V DC, 24V AC, 230V AC
Current:
Non-latching: 8W; latching: 10W latch
Power Supply:
12V DC, 24V DC, 24V AC, 230V AC
Installation Type:
Screwed inline pipe installation
Power Supply:
12V DC, 24V DC, 24V AC, 230V AC
Mounting Type:
Screwed
Current:
Non-latching: 8W; latching: 10W latch

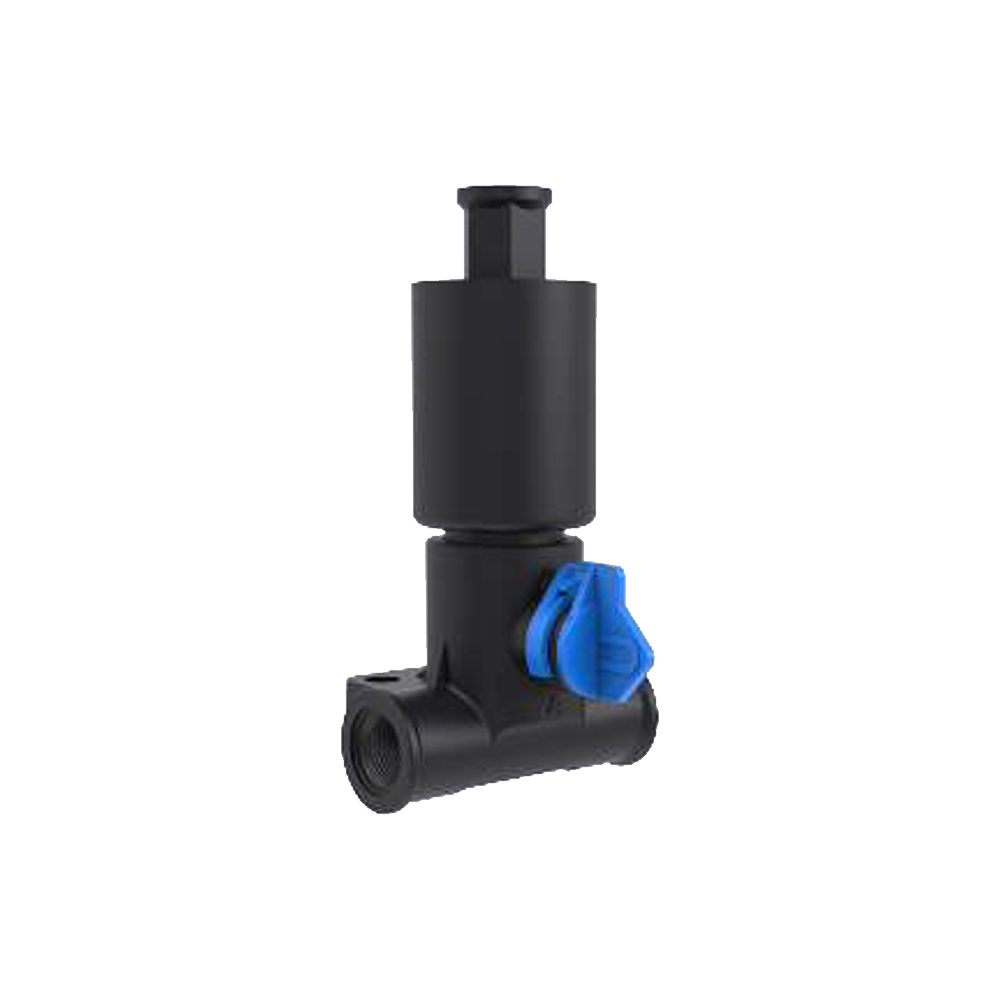

The DAP Series 3 Way Direct Acting Pilot Solenoid Valve is designed for compact irrigation and water control circuits requiring responsive pilot valve operation. Built with a Nylon GF body and Nitrile (NBR) seal / diaphragm material, it provides a lightweight plastic body solution for water applications where reliable electrical switching and corrosion resistant internal components are important.
Available with a 1/8" screwed port, the valve supports BSPT and NPT connection options. It operates across a 0 to 10 bar pressure range and is suitable for water media up to 60°C, with an ambient temperature range of -10°C to 50°C.
The 3 way configuration supports normally closed and normally open operation, with port functions changing by valve position. Internal parts made from superior corrosion resistant steel, equivalent to SS316L, help improve durability in irrigation and water control environments. A 3 position manual override supports commissioning, testing and maintenance.
Voltage options include 12V DC, 24V DC, 24V AC and 230V AC, with 12V DC and 24V DC latching versions also available. With an 8W non latching power rating and 10W latch / 10W delatch latching operation, the DAP Series 3 Way valve is well suited to pilot control duties within irrigation valve assemblies and OEM water control systems.
For best performance, the valve should be selected to match the required valve position, port function, voltage configuration, pressure range and water-only application requirements.
Key Benefits
3 way pilot valve operation for compact irrigation and water control circuits.
Normally closed and normally open options to suit different control layouts.
0 to 10 bar operating pressure for water control applications.
Nylon GF body construction with Nitrile (NBR) seal / diaphragm material.
Corrosion resistant internal parts equivalent to SS316L to support durability.
Multiple voltage options, including 12V DC and 24V DC latching versions.
3 position manual override for easier testing, commissioning and maintenance.
