TPS-DAP-TO
Part Number:
TPS-DAP-TO
Product Type:
Direct Acting Pilot Solenoid Valve
Pressure Type:
Water / Irrigation Media
Pressure Range:
0 to 10 bar
Process Connection:
Screwed (BSPT / NPT)
Electrical Connection:
Solenoid
Body Material:
Nylon GF
Size:
1/8"
Seal Type:
Nitrile
Temperature:
Media temp: 60°C; ambient temp: -10°C to 50°C
Voltage:
12V DC, 24V DC, 24V AC, 230V AC
Current:
6W latch / 6W delatch
Power Supply:
12V DC, 24V DC, 24V AC, 230V AC
Installation Type:
Screwed inline pipe installation
Power Supply:
12V DC, 24V DC, 24V AC, 230V AC
Mounting Type:
Screwed
Current:
6W latch / 6W delatch

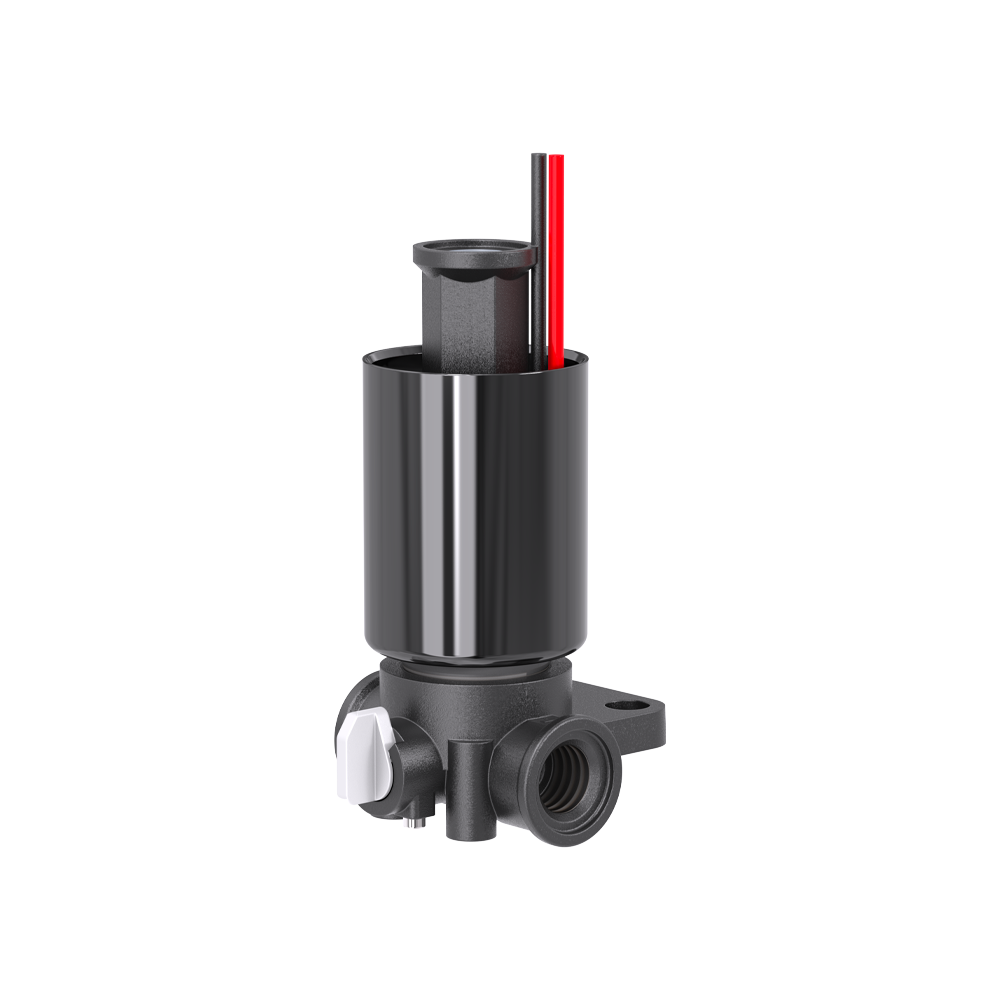

The DAP Series Direct Acting Pilot Solenoid Valve is designed for compact irrigation and water control circuits requiring responsive 2 way or 3 way pilot valve operation. Built with a Nylon GF body and Nitrile (NBR) seal / diaphragm material, it provides a lightweight plastic body solution for water applications where reliable electrical switching and corrosion resistant internal components are important.
Available with a 1/8" screwed port, the DAP Series supports BSPT and NPT connection options. It operates across a 0 to 10 bar pressure range and is suitable for water media up to 60°C, with an ambient temperature range of -10°C to 50°C.
The valve supports normally closed and normally open configurations, depending on the 2 way or 3 way valve arrangement. Internal parts made from superior corrosion resistant steel, equivalent to SS316L, help improve durability in irrigation and water control environments. A 2 position manual override supports commissioning, testing and maintenance.
Voltage options include 12V DC, 24V DC, 24V AC and 230V AC, with 12V DC and 24V DC latching versions also available. With 6W power consumption and compact 1/8" porting, the DAP Series is well suited to pilot control duties within irrigation valve assemblies and OEM water control systems.
For best performance, the valve should be selected to match the required valve type, port function, voltage configuration, pressure range and water-only application requirements.
Key Benefits
2 way and 3 way pilot valve options for compact water control circuits.
Normally closed and normally open configurations depending on valve arrangement.
0 to 10 barpressure range for irrigation and water control use.
Nylon GF body construction with Nitrile (NBR) seal / diaphragm material.
Corrosion resistant internal parts equivalent to SS316L to support durability.
Multiple voltage options, including 12V DC and 24V DC latching versions.
2 position manual override for easier testing and commissioning.
As an agile UK engineering partner, TPS provides support beyond standard product supply. We help specify and integrate valves like the DAP Series Direct Acting Pilot Solenoid Valve into practical, cost effective irrigation, water distribution and OEM fluid control systems. From valve type and port function to voltage configuration and installation requirements, our team can help match the valve to your application.
Contact TPS today to discuss the DAP Series Direct Acting Pilot Solenoid Valve and configure the right solution for your water control system.
Interested in purchasing this product? We’re here to help. Reach out to us using the contact details provided, or fill in the request quote form, and a member of our team will get back to you promptly.
