TPS-ENN-JB
Part Number:
TPS-ENN-JB
Product Type:

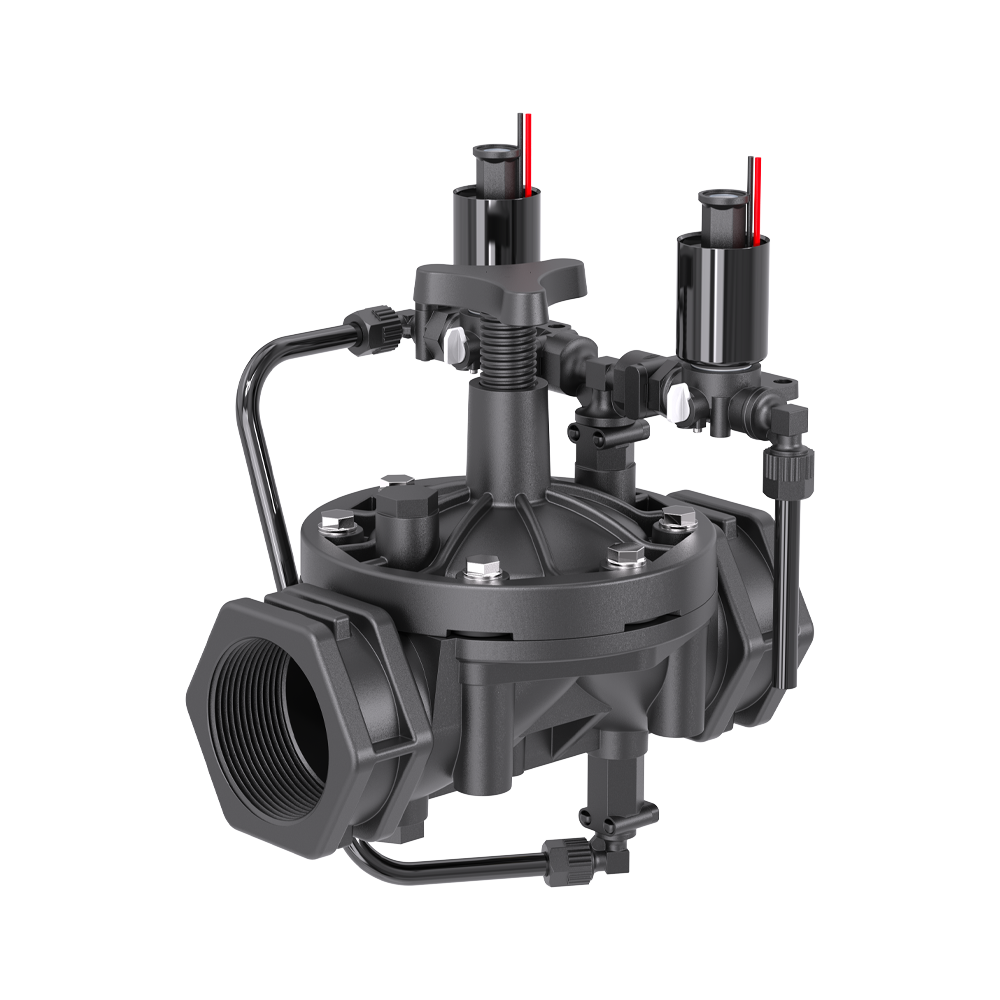

2 Way Control Diaphragm Valve with Flow Controller
Pressure Type:
Water / Irrigation Media
Pressure Range:
1 to 10 bar
Screwed (BSP / NPT / BSPT)
Process Connection:
Electrical Connection:
Body Material:
Nylon GF
Size:
1 1/2", 2"
Seal Type:
Natural Rubber
Temperature:
Media temp: 60°C; ambient temp: -10°C to 60°C
Voltage:
12V DC, 24V DC, 24V AC, 230V AC
Current:
Power Supply:
Installation Type:
Screwed inline pipe installation
Power Supply:
Mounting Type:
Screwed
Current:
The ENN Series 2 Way Control Valve with Flow Controller is designed for irrigation and water-control applications requiring dependable valve operation with built-in flow adjustment. Built with a Nylon GF body and Natural Rubber diaphragm, it provides a practical plastic body solution for water systems where corrosion resistant internal components and reliable control are important.
Available in 1 1/2" and 2" port sizes, the valve supports screwed connections with BSP, NPT and BSPT options. It operates across a 1 to 10 bar pressure range and is suitable for water media up to 60°C, with an ambient temperature range of -10°C to 60°C.
The integrated flow controller helps simplify system design by supporting local flow adjustment without requiring a separate inline control component. Internal parts made from superior corrosion resistant steel help improve durability in irrigation and water distribution environments.
Non latching voltage options include 12V DC, 24V DC, 24V AC and 230V AC, while latching versions are available in 12V DC, 24V DC and 9 to 30V DC configurations. With Kv values of 60 and 70 m³/hr, the ENN Series 2 Way Control Valve with Flow Controller is well suited to high flow water control installations.
For best performance, the valve should be selected to match the required pipe size, operating pressure, voltage configuration and water only application requirements.
Key Benefits
Integrated flow controller for local flow adjustment within irrigation and water control systems.
High flow performance with Kv values of 60 and 70 m³/hr.
Corrosion-resistant internal parts to support durability in water system environments.
Nylon GF body construction for a practical plastic body valve solution.
Multiple voltage options across non latching and latching configurations.
Screwed connection options available in BSP, NPT and BSPT.
