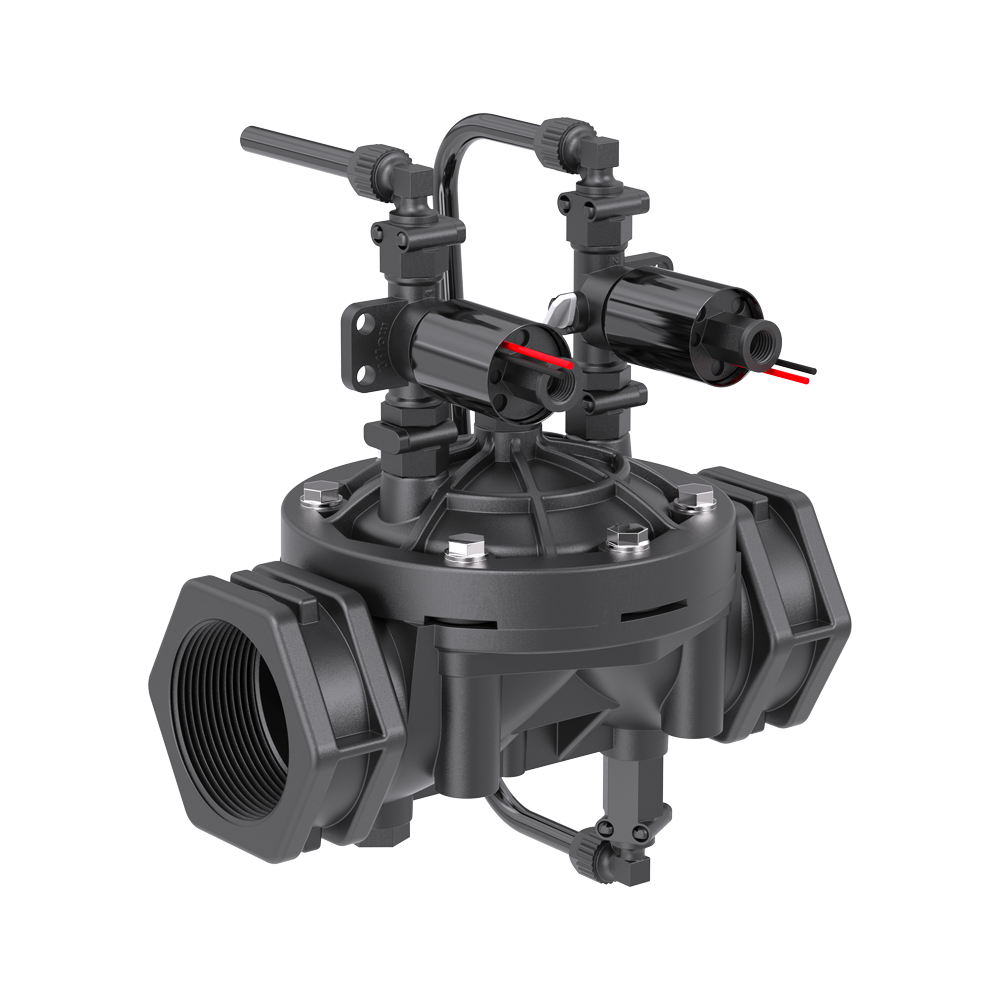

TPS-ENN-CB
Part Number:
TPS-ENN-CB
Product Type:
2 Way Control Double Solenoid Diaphragm Valve
Pressure Type:
Water / Irrigation Media
Pressure Range:
1 to 10 bar
Process Connection:
Screwed (BSP / NPT / BSPT)
Electrical Connection:
Double solenoid
Body Material:
Nylon GF
Size:
1 1/2", 2", 2 1/2", 3"
Seal Type:
Natural Rubber
Temperature:
Media temp: 60°C; ambient temp: -10°C to 60°C
Voltage:
12V DC, 24V DC, 24V AC, 230V AC; latching 9 to 30V DC option
Current:
Power Supply:
Installation Type:
Screwed inline pipe installation
Power Supply:
Mounting Type:
Screwed
Current:
The ENN Series 2 Way Control Double Solenoid Valve is designed for irrigation and water-control applications requiring dependable on/off valve operation across larger pipe sizes. Built with a Nylon GF body and Natural Rubber diaphragm, it provides a practical plastic body solution for water systems where corrosion resistant internal components and reliable switching are important.
Available in 1 1/2", 2", 2 1/2" and 3" port sizes, the valve supports screwed connections with BSP, NPT and BSPT options. It operates across a 1 to 10 bar pressure range and is suitable for water media up to 60°C, with an ambient temperature range of -10°C to 60°C.
The double solenoid configuration supports controlled 2 way operation, while the 2 position manual override helps simplify commissioning, testing and maintenance. Internal parts made from superior corrosion resistant steel help improve durability in irrigation and water distribution environments.
Non latching voltage options include 12V DC, 24V DC, 24V AC and 230V AC, while latching versions are available in 12V DC, 24V DC and 9 to 30V DC configurations. With Kv values from 60 to 90 m³/hr, the ENN Series 2 Way Control Double Solenoid Valve is well suited to high flow irrigation and water control installations.
For best performance, the valve should be selected to match the required pipe size, operating pressure, voltage configuration and water-only application requirements.
Key Benefits
2 way double solenoid control for dependable irrigation and water-system operation.
High flow capacity with Kv values from 60 to 90 m³/hr, depending on port size.
Corrosion resistant internal parts to support durability in water control environments.
2 position manual override for easier testing, commissioning and maintenance.
Multiple voltage options across non-latching and latching configurations.
Large screwed port sizes from 1 1/2" to 3", with BSP, NPT and BSPT options.
