TPS-ENN-BFC
Part Number:
TPS-ENN-BFC
Product Type:
External Pilot Operated Diaphragm Valve
Pressure Type:
Water / Irrigation Media
Pressure Range:
1 to 10 bar
Process Connection:
Screwed (BSP / NPT / BSPT)
Electrical Connection:
Body Material:
Nylon GF
Size:
1 1/2", 2", 2 1/2", 3"
Seal Type:
Natural Rubber diaphragm
Temperature:
Media temp: 60°C; ambient temp: -10°C to 60°C
Voltage:
Current:
Power Supply:
12V DC, 24V DC, 24V AC, 230V AC
Installation Type:
Screwed inline pipe installation
Power Supply:
12V DC, 24V DC, 24V AC, 230V AC
Mounting Type:
Screwed
Current:

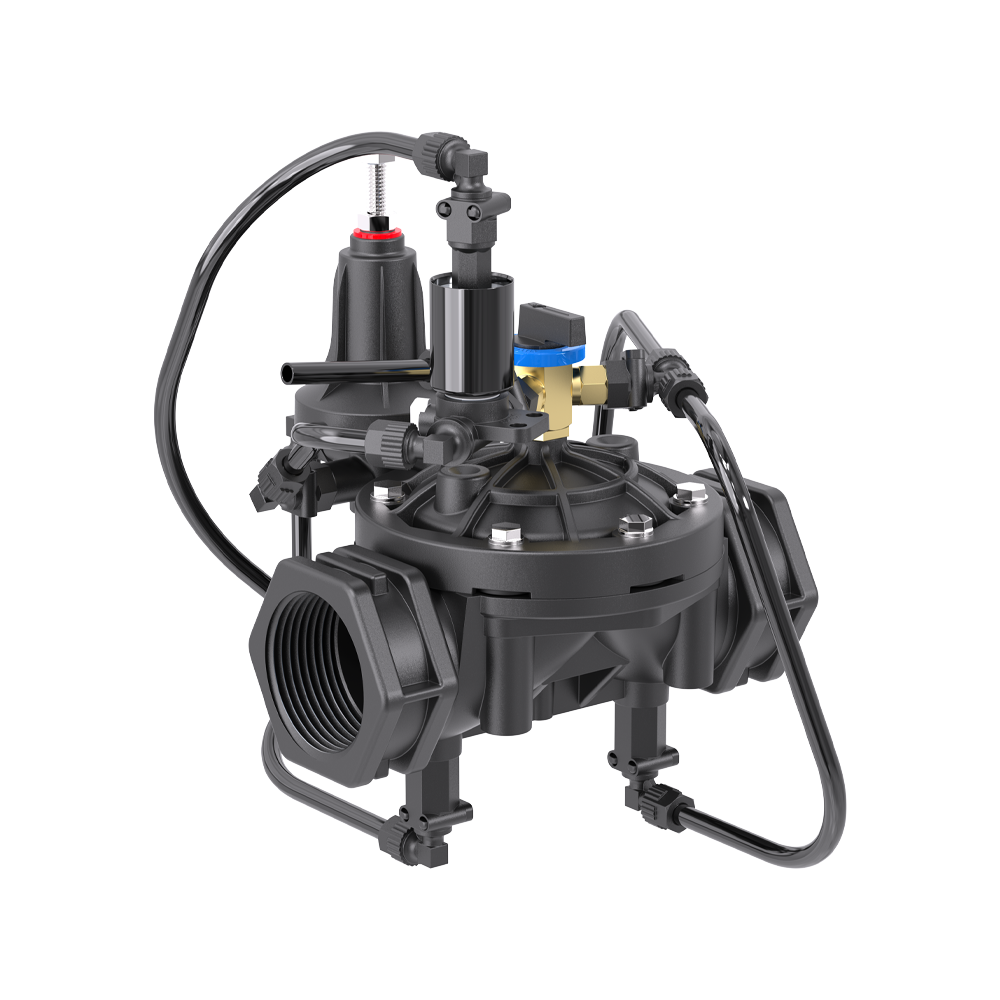

The ENN Series External Pilot Operated Diaphragm Valve is designed for irrigation and water control applications requiring dependable on/off flow management across larger pipe sizes. Built with a Nylon GF body and Natural Rubber diaphragm, the valve provides a practical plastic-body solution for water systems where corrosion-resistant internal components and reliable switching are important.
Available in 1 1/2", 2", 2 1/2" and 3" port sizes, the ENN Series supports screwed connections with BSP, NPT and BSPT options. The valve operates across a 1 to 10 bar pressure range and is suitable for water media up to 60°C, with an ambient temperature range of -10°C to 60°C.
The design includes internal parts made from superior corrosion resistant steel, making it well suited to irrigation environments and water distribution systems. It also supports 2 position and 3 position manual override options, helping simplify commissioning, testing and maintenance.
Non-latching voltage options include 12V DC, 24V DC, 24V AC and 230V AC, while latching versions are available in 12V DC, 24V DC and 9 to 30V DC configurations. With Kv values from 60 to 90 m³/hr, the ENN Series is a strong choice for high-flow irrigation and fluid control installations.
For best performance, the valve should be selected to match the required pipe size, pressure range, voltage configuration and water only operating conditions.
Key Benefits
Designed for irrigation and water control using a Nylon GF body and Natural Rubber diaphragm.
High flow performance with Kv values from 60 to 90 m³/hr, depending on port size.
Corrosion resistant internal parts to support durability in water system environments.
Multiple voltage options across non latching and latching configurations.
Manual override options with 2 position and 3 position MOR functionality.
Large port size range covering 1 1/2", 2", 2 1/2" and 3" screwed pipe connections.
As an agile UK engineering partner, TPS provides technical support beyond standard product supply. We help specify and integrate high flow valves like the ENN Series External Pilot Operated Diaphragm Valve into irrigation, water distribution and OEM fluid control systems. From pipe size and pressure range to voltage configuration and application suitability, our team can help ensure the valve is correctly matched to the installation.
Contact TPS today to discuss the ENN Series and configure the right external pilot operated diaphragm valve for your water control application.
