TPS-ENN-PC
Part Number:
TPS-ENN-PC
Product Type:
External Pilot Operated Pressure Reducing Diaphragm Valve with Solenoid
Pressure Type:
Water / Irrigation Media
Pressure Range:
1 to 10 bar
Process Connection:
Screwed (BSP / NPT / BSPT)
Electrical Connection:
Solenoid
Body Material:
Nylon GF
Size:
1 1/2", 2", 2 1/2", 3"
Seal Type:
Natural Rubber
Temperature:
Media temp: 60°C; ambient temp: -10°C to 60°C
Voltage:
12V DC, 24V DC, 24V AC, 230V AC
Current:
Power Supply:
Installation Type:
Screwed inline pipe installation
Power Supply:
Mounting Type:
Screwed
Pressure reducing: 1 to 5 bar
Current:

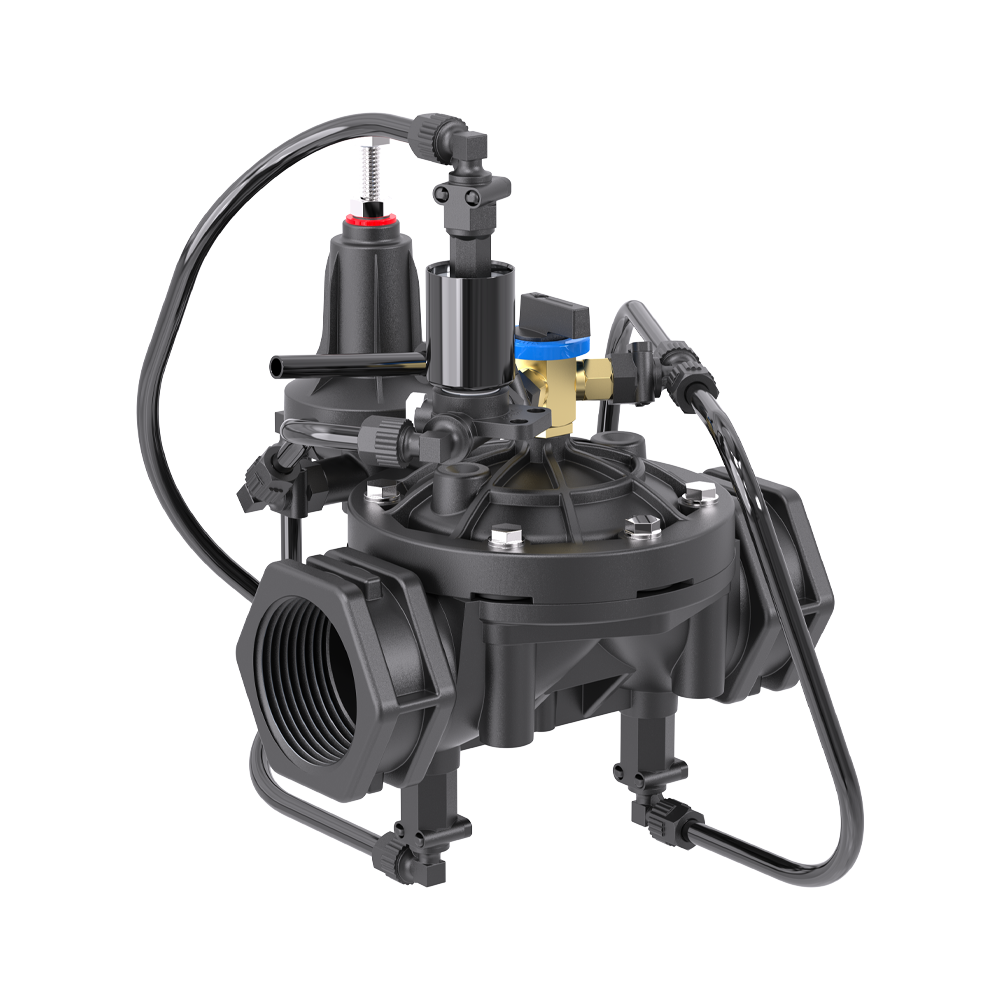

The ENN Series Pressure Reducing Solenoid Valve is designed for irrigation and water distribution systems requiring controlled downstream pressure with solenoid operation. Built with a Nylon GF body and Natural Rubber diaphragm, it provides a practical plastic body solution for water systems where pressure reduction, corrosion resistant internal components and dependable valve control are important.
Available in 1 1/2", 2", 2 1/2" and 3" port sizes, the valve supports screwed connections with BSP, NPT and BSPT options. It operates across a 1 to 10 bar pressure range and provides pressure reducing control from 1 to 5 bar.
Internal parts made from superior corrosion resistant steel help improve durability in irrigation and water control environments. The valve is suitable for water media up to 60°C, with an ambient temperature range of -10°C to 60°C.
Non latching voltage options include 12V DC, 24V DC, 24V AC and 230V AC, while latching versions are available in 12V DC, 24V DC and 9 to 30V DC configurations. With Kv values from 60 to 90 m³/hr, the ENN Series Pressure Reducing Solenoid Valve is well suited to larger irrigation and water control installations requiring pressure reduction with electrical actuation.
For best performance, the valve should be selected to match the required pipe size, operating pressure, pressure reducing range, voltage configuration and water only application requirements.
Key Benefits
Pressure reducing control with an adjustment range of 1 to 5 bar.
Solenoid operated valve control for irrigation and water distribution systems.
High flow capacity with Kv values from 60 to 90 m³/hr, depending on port size.
Corrosion resistant internal parts to support durability in water system environments.
Nylon GF body construction with Natural Rubber diaphragm.
Multiple voltage options across non latching and latching configurations.
As an agile UK engineering partner, TPS provides support beyond standard product supply. We help specify and integrate valves like the ENN Series Pressure Reducing Solenoid Valve into practical, cost effective irrigation, water distribution and OEM fluid control systems. From port size and pressure reducing range to voltage configuration and installation requirements, our team can help match the valve to your application.
Contact TPS today to discuss the ENN Series Pressure Reducing Solenoid Valve and configure the right solution for your water control system.
