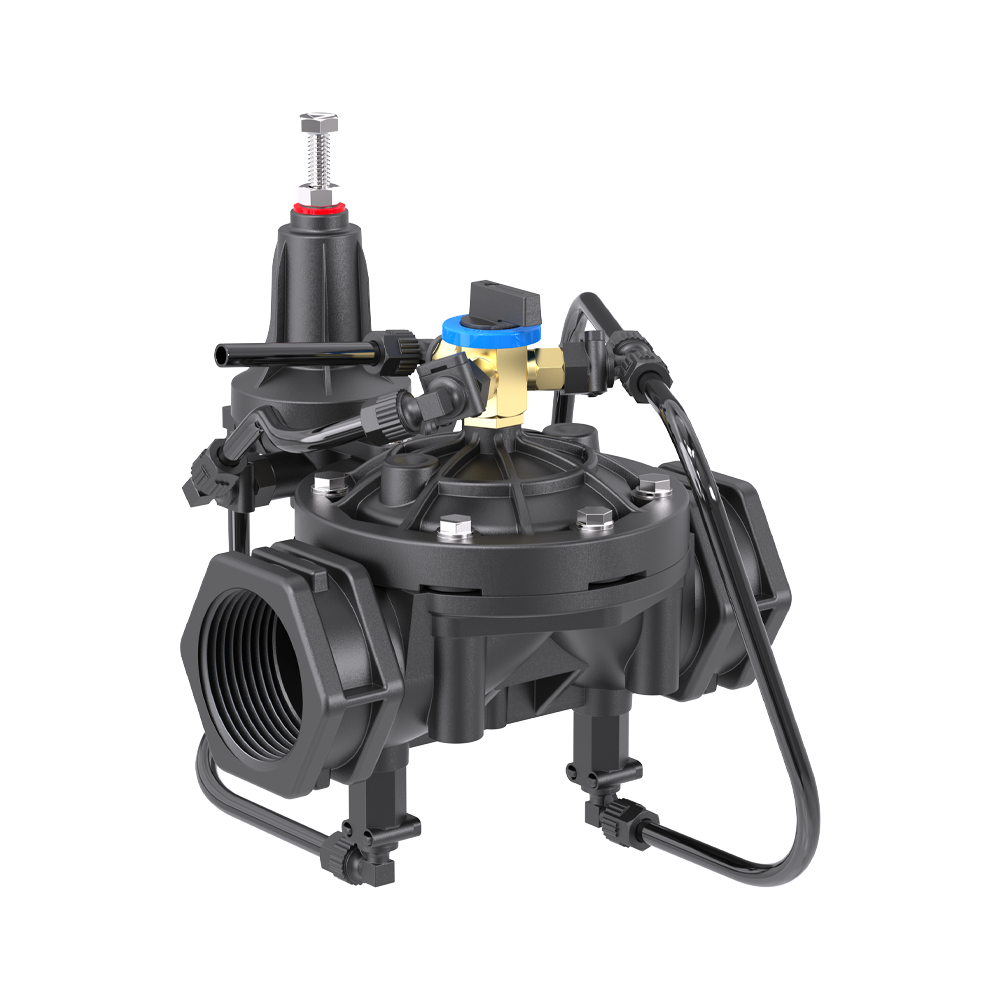

TPS-ENN-D
Part Number:
TPS-ENN-D
Product Type:
External Pilot Operated Pressure Reducing Diaphragm Valve W/O Solenoid
Pressure Type:
Water / Irrigation Media
Pressure Range:
1 to 10 bar
Process Connection:
Screwed (BSP / NPT / BSPT)
Electrical Connection:
Body Material:
Nylon GF
Size:
1 1/2", 2", 2 1/2", 3"
Seal Type:
Natural Rubber
Temperature:
Media temp: 60°C; ambient temp: -10°C to 60°C
Voltage:
Current:
Power Supply:
Installation Type:
Screwed inline pipe installation
Power Supply:
Mounting Type:
Screwed
Pressure reducing: 1 to 5 bar
Current:
The ENN Series Pressure Reducing Valve W/O Solenoid is designed for irrigation and water distribution systems requiring downstream pressure reduction without solenoid operation. Built with a Nylon GF body and Natural Rubber diaphragm, it provides a practical plastic body solution for water systems where pressure control, corrosion resistant internal components and dependable operation are important.
Available in 1 1/2", 2", 2 1/2" and 3" port sizes, the valve supports screwed connections with BSP, NPT and BSPT options. It operates across a 1 to 10 bar pressure range and provides pressure reducing control from 1 to 5 bar.
Internal parts made from superior corrosion resistant steel help improve durability in irrigation and water control environments. The valve is suitable for water media up to 60°C, with an ambient temperature range of -10°C to 60°C.
With Kv values from 60 to 90 m³/hr, the ENN Series Pressure Reducing Valve W/O Solenoid is well suited to larger irrigation and water control installations requiring pressure reduction without electrical solenoid actuation.
For best performance, the valve should be selected to match the required pipe size, operating pressure, pressure reducing range and water-only application requirements.
Key Benefits
Pressure reducing control with an adjustment range of 1 to 5 bar.
Without solenoid operation for applications that do not require electrical actuation.
High flow capacity with Kv values from 60 to 90 m³/hr, depending on port size.
Corrosion resistant internal parts to support durability in water system environments.
Nylon GF body construction with Natural Rubber diaphragm.
Screwed connection options available in BSP, NPT and BSPT.
As an agile UK engineering partner, TPS provides support beyond standard product supply. We help specify and integrate valves like the ENN Series Pressure Reducing Valve W/O Solenoid into practical, cost effective irrigation, water distribution and OEM fluid control systems. From port size and pressure reducing range to installation requirements and system suitability, our team can help match the valve to your application.
Contact TPS today to discuss the ENN Series Pressure Reducing Valve W/O Solenoid and configure the right solution for your water control system.
