TPS-ENN-TC
Part Number:
TPS-ENN-TC
Product Type:
External Pilot Operated Pressure Sustaining Diaphragm Valve with Solenoid
Pressure Type:
Water / Irrigation Media
Pressure Range:
1 to 10 bar
Process Connection:
Screwed (BSP / NPT / BSPT)
Electrical Connection:
Solenoid
Body Material:
Nylon GF
Size:
1 1/2", 2", 2 1/2", 3"
Seal Type:
Natural Rubber
Temperature:
Media temp: 60°C; ambient temp: -10°C to 60°C
Voltage:
12V DC, 24V DC, 24V AC, 230V AC
Current:
Power Supply:
12V DC, 24V DC, 24V AC, 230V AC
Installation Type:
Screwed inline pipe installation
Power Supply:
12V DC, 24V DC, 24V AC, 230V AC
Mounting Type:
Screwed
Pressure sustaining: 1 to 5 bar
Current:

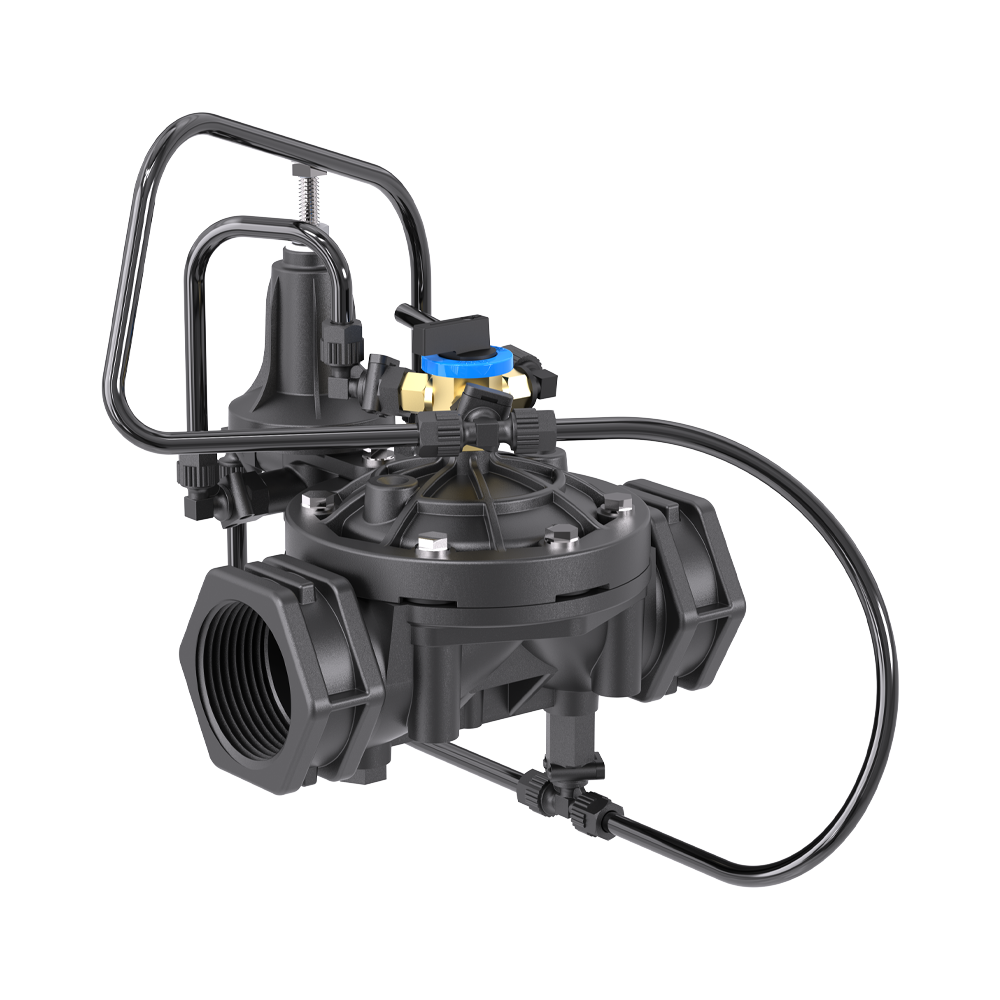

The ENN Series Pressure Sustaining Solenoid Valve is designed for irrigation and water distribution systems requiring pressure sustaining control with solenoid operation. Built with a Nylon GF body and Natural Rubber diaphragm, it provides a practical plastic body solution for water systems where pressure management, corrosion resistant internal components and electrical valve control are important.
Available in 1 1/2", 2", 2 1/2" and 3" port sizes, the valve supports screwed connections with BSP, NPT and BSPT options. It operates across a 1 to 10 bar pressure range and provides pressure sustaining control from 1 to 5 bar.
Internal parts made from superior corrosion resistant steel help improve durability in irrigation and water control environments. The valve is suitable for water media up to 60°C, with an ambient temperature range of -10°C to 60°C.
Non latching voltage options include 12V DC, 24V DC, 24V AC and 230V AC, while latching versions are available in 12V DC, 24V DC and 9 to 30V DC configurations. With Kv values from 60 to 90 m³/hr, the ENN Series Pressure Sustaining Solenoid Valve is well suited to larger irrigation and water control installations requiring pressure sustaining operation with electrical actuation.
For best performance, the valve should be selected to match the required pipe size, operating pressure, pressure sustaining range, voltage configuration and water-only application requirements.
Key Benefits
Pressure sustaining control with an adjustment range of 1 to 5 bar.
Solenoid operated valve control for irrigation and water distribution systems.
High flow capacity with Kv values from 60 to 90 m³/hr, depending on port size.
Corrosion resistant internal parts to support durability in water system environments.
Nylon GF body construction with Natural Rubber diaphragm.
Multiple voltage options across non latching and latching configurations.
