TPS-ENN-FC
Part Number:
TPS-ENN-FC
Product Type:

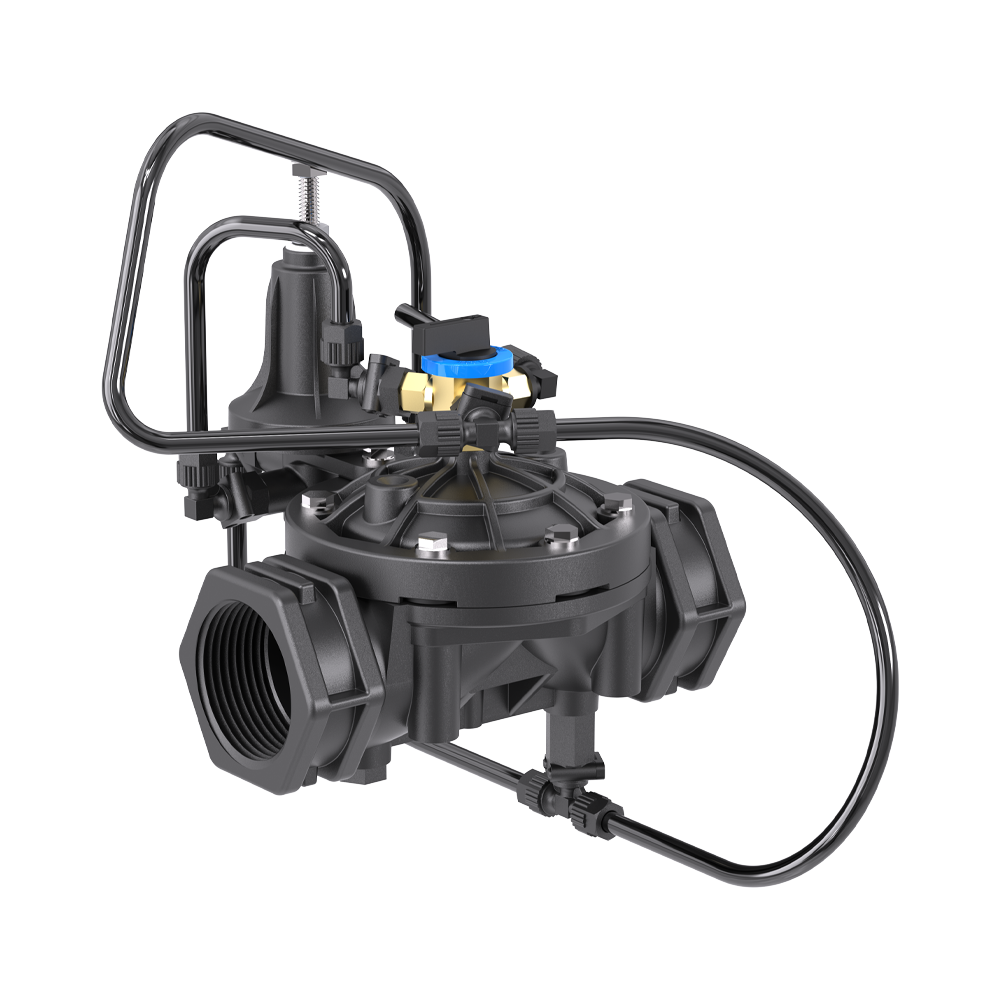

External Pilot Operated Quick Pressure Relief Diaphragm Valve
Pressure Type:
Water / Irrigation Media
Pressure Range:
1 to 10 bar
Process Connection:
Screwed End (BSP / NPT / BSPT)
Electrical Connection:
Body Material:
Nylon GF
Size:
1 1/2", 2", 2 1/2", 3"
Seal Type:
Natural Rubber
Temperature:
Media temp: 60°C; circumstance temp: -10°C to 60°C
Voltage:
Current:
Power Supply:
Installation Type:
Screwed inline pipe installation
Power Supply:
Mounting Type:
Screwed End
Pressure relief: 1 to 5 bar
Current:
The ENN Series Quick Pressure Relief Valve is designed for irrigation and water control systems requiring responsive relief of excess pressure. Built with a Nylon GF body and Natural Rubber diaphragm, it provides a practical plastic body solution for water systems where pressure relief, corrosion resistant internal components and dependable operation are important.
Available in 1 1/2", 2", 2 1/2" and 3" port sizes, the valve supports screwed end connections with BSP, NPT and BSPT options. It operates across a 1 to 10 bar pressure range and provides pressure relief control from 1 to 5 bar.
Internal parts made from superior corrosion resistant steel help improve durability in irrigation and water control environments. The valve is suitable for water media up to 60°C, with an ambient temperature range of -10°C to 60°C.
With Kv values from 60 to 90 m³/hr, the ENN Series Quick Pressure Relief Valve is well suited to larger irrigation and water distribution installations requiring pressure relief without electrical actuation.
For best performance, the valve should be selected to match the required pipe size, operating pressure, pressure relief range and water only application requirements.
Key Benefits
Quick pressure relief control with an adjustment range of 1 to 5 bar.
Designed for water and irrigation systems requiring excess pressure management.
High flow capacity with Kv values from 60 to 90 m³/hr, depending on port size.
Corrosion resistant internal parts to support durability in water system environments.
Nylon GF body construction with Natural Rubber diaphragm.
Screwed end connection options available in BSP, NPT and BSPT.
As an agile UK engineering partner, TPS provides support beyond standard product supply. We help specify and integrate valves like the ENN Series Quick Pressure Relief Valve into practical, cost effective irrigation, water distribution and OEM fluid control systems. From port size and pressure relief range to installation requirements and system suitability, our team can help match the valve to your application.
Contact TPS today to discuss the ENN Series Quick Pressure Relief Valve and configure the right solution for your water control system.
