TPS-PNN
Part Number:
TPS-PNN
Product Type:
Pilot Operated Diaphragm Solenoid Valve
Pressure Type:
Water / Liquid Media
Pressure Range:
0.5 to 10 bar
Process Connection:
Screwed (BSP / BSPT / NPT)
Electrical Connection:
Coil housing: IP65 epoxy square coil, IP65 metallic round enclosure
Body Material:
Nylon GF
Size:
3/4", 1", 1 1/2", 2"
Seal Type:
Natural Rubber; EPDM
Temperature:
Media temp: 60°C; ambient temp: -10°C to 50°C
Voltage:
24V AC, 24V DC, 12V DC
Current:
8W power consumption
Power Supply:
Installation Type:
Screwed inline pipe installation
Power Supply:
Mounting Type:
Screwed
IP65, IP68
Current:
8W power consumption

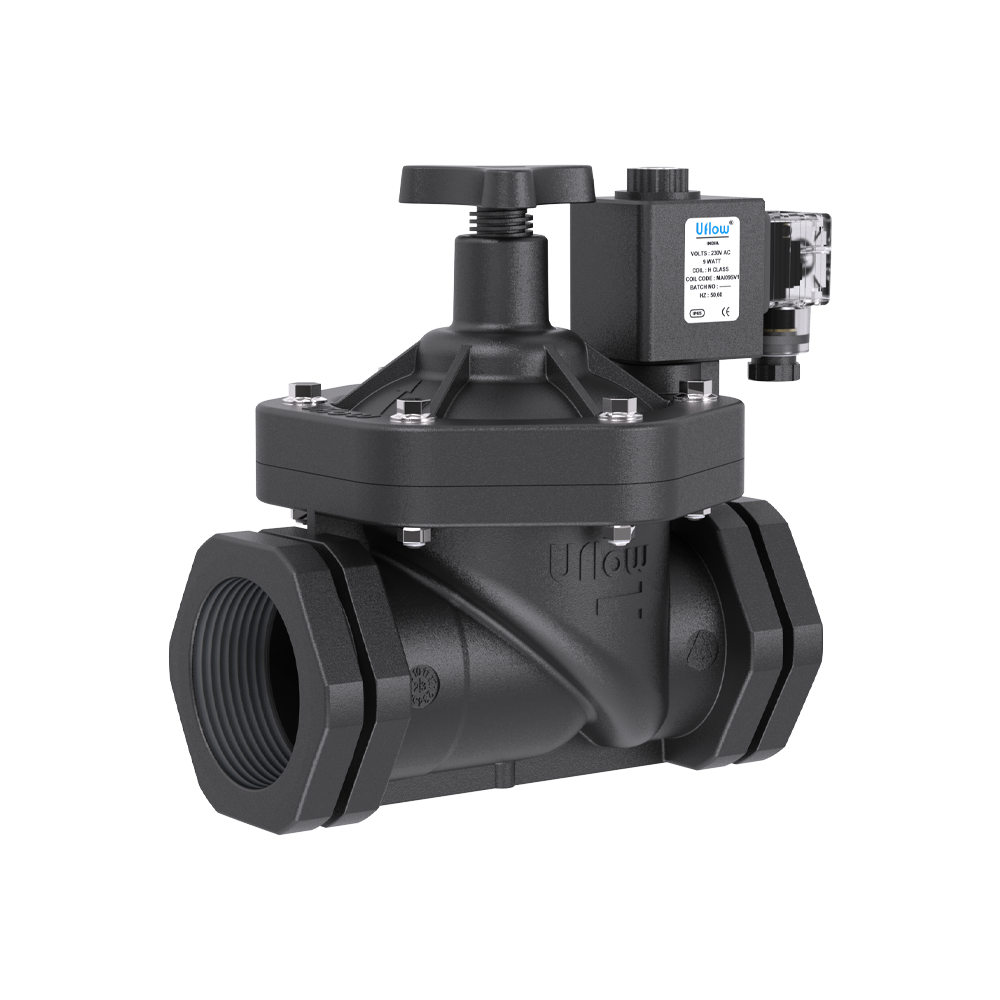

The PNN Series Pilot Operated Diaphragm Type Plastic Solenoid Valve is designed for water control applications requiring dependable flow management, low head loss and practical installation flexibility. Built with a Nylon GF body and Natural Rubber diaphragm, the valve is suitable for irrigation, water distribution and OEM fluid-control systems where plastic construction and screwed pipe connections are preferred.
Available in 3/4", 1", 1 1/2" and 2" port sizes, the PNN Series supports screwed connections with BSP, BSPT and NPT options. The valve operates across a 0.5 to 10 bar pressure range and includes an inbuilt flow controller to help adjust system flow without adding a separate control component.
The normally closed design includes manual override, pressure-below-seat operation to help reduce water hammer, and high-flow performance with low head loss. Coil options support 24V AC, 24V DC and 12V DC operation with 8W power consumption, while housing options include IP65 epoxy square coil, IP65 metallic round enclosure and IP68 weatherproof enclosure.
For reliable operation, a filter on the inlet port is recommended.
Key Benefits
Built-in flow control for easier adjustment within irrigation and water-control systems.
Manual override for practical commissioning, testing and maintenance.
Pressure-below-seat design to help reduce water hammer in pipework.
Low head loss with high flow across the available port sizes.
Flexible coil positioning with lockable 4 x 90° coil orientation or free positioning between lock points.
Multiple enclosure options, including IP65 and IP68 coil housing choices.
As an agile UK engineering partner, TPS supports more than component supply. We help specify, source and integrate reliable valves like the PNN Series Plastic Solenoid Valve into practical, cost effective fluid control systems. Whether you need support with port size, voltage, enclosure type or complete system compatibility, our team can help match the valve to your application requirements.
Contact TPS today to discuss the PNN Series and build it into your next irrigation, water control or OEM fluid handling solution.
Interested in purchasing this product? We’re here to help. Reach out to us using the contact details provided, or fill in the request quote form, and a member of our team will get back to you promptly.
