TPS-ADP2400
Part Number:
TPS-ADP2400
Product Type:
pH Sensor
Pressure Type:
pH value , temperature (optional)
Pressure Range:
pH: (0.00～14.00 ) Temperature (optional): (0～60) ℃
Process Connection:
Electrical Connection:
Body Material:
Size:
Seal Type:
Temperature:
(0～50)℃
pH : 0.02 Temperature: 0.5℃
Voltage:
12VDC @ 10mA Typical
Current:
Power Supply:
(6～30)VDC
Installation Type:
Power Supply:
(6～30)VDC
Mounting Type:
pH: (0.00～14.00 ) Temperature (optional): (0～60) ℃
Current:

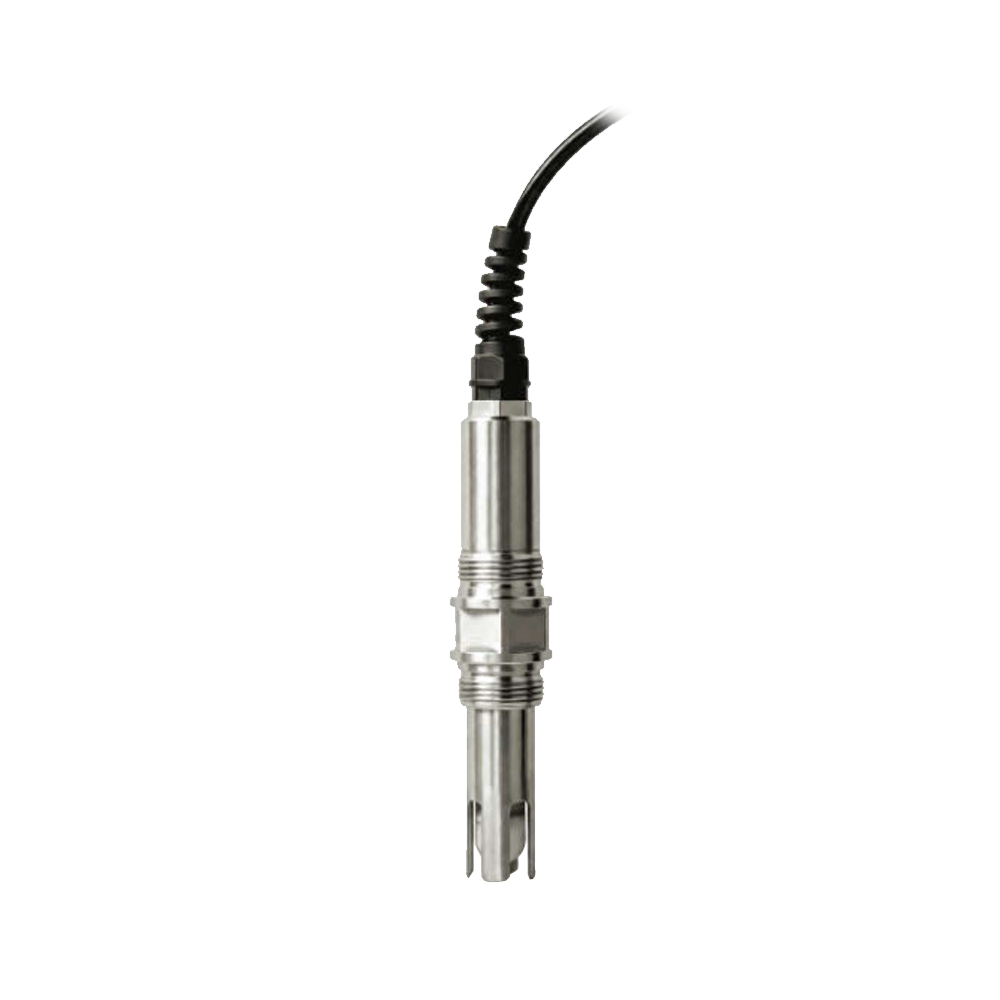

This digital pH sensor is specifically designed for aquaculture applications. It is equipped with a digital communication interface (1 × RS485) and is used to measure pH variations in aqueous solutions within the specified measurement range. The sensor supports the standard RS485 interface with the Modbus RTU protocol, enabling remote communication with host systems such as PLCs, industrial PCs, or SCADA systems.
Compact Design: Small footprint makes installation straightforward, particularly where space is limited.
Stable & Reliable Performance: Isolated power supply design helps improve data stability and provides strong resistance to electromagnetic interference.
Flexible Temperature Compensation: Supports both automatic temperature compensation (ATC) and manual temperature compensation to suit different measurement requirements.
Easy Calibration: Compatible with USA, NIST and user-defined pH buffer solutions for flexible calibration.
Advanced Communication: RS485 interface with Modbus RTU support allows easy integration with monitoring and control systems.
Customisable Configuration: Communication functions allow user-defined calibration solutions, device ID setup and factory reset for greater control during commissioning and maintenance.
