TPS-LG200-FRF

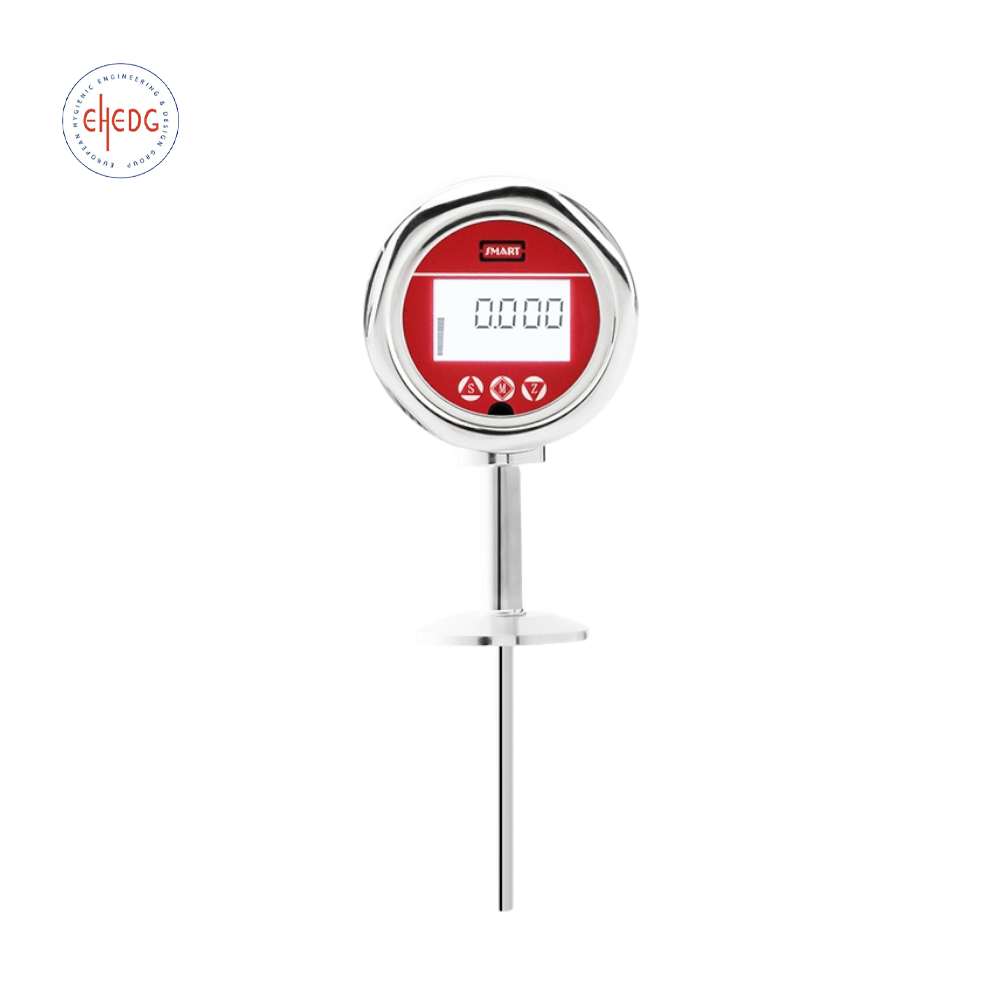

LG200-FRF integrated temperature transmitter adopts ASIC & SMT signal transmitting module, optional built-in backlight and button operation LCD display module.The integrated transient voltage terminal satisfy 4 grade standard (difference-mode voltage 2000V, common-mode voltage 4000V), suitable for bad surge voltage occasions.LG200-FRF sanitary temperature transmitter is designed for food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilisation. The wetted parts are made of high quality stainless steel 316L. Roughness≤0.4um, variety of international standard process connections are available. EHEDG certified.
TPS-LG200-FRF
Transmitter
Temperature Measurement
4-20mA
M20*1.5(M), G1/2(M), 1/2- 14NPT(M), Tri-Clamp 1-1/2", Tri-Clamp 2"
Stainless steel termimal, aviation plug M12*1 (4 pins) (H2)
-40-85℃, integrated LCD display: -20-70℃
±0.5% URL
6mm, 8mm, 10mm, 12mm, 14mm
Pipe、tube or others
-50 - 400℃
0-95%RH
IP67
