TPS-SUP-FCC800
Part Number:
TPS-SUP-FCC800
Product Type:
Flow Meter
Pressure Type:
Mass Flow, Density, Temperature
Pressure Range:
0.2~12000 kg/min
Process Connection:
Electrical Connection:
Body Material:
Size:
Seal Type:
Temperature:
-240~350℃
Flow Rate: 0.15 Class, 0.2 Class, 0.5, Class Density: ±0.001g/cm3（±1kg/m), Temperature: ±1°C or ±0.5% of reading, whichever is greater
Voltage:
Current:
Power Supply:
24VDC/220VAC
Installation Type:
DN3~DN150
Power Supply:
24VDC/220VAC
Mounting Type:
0.5~2.0 g/cm3
≤95%
IP67
Current:

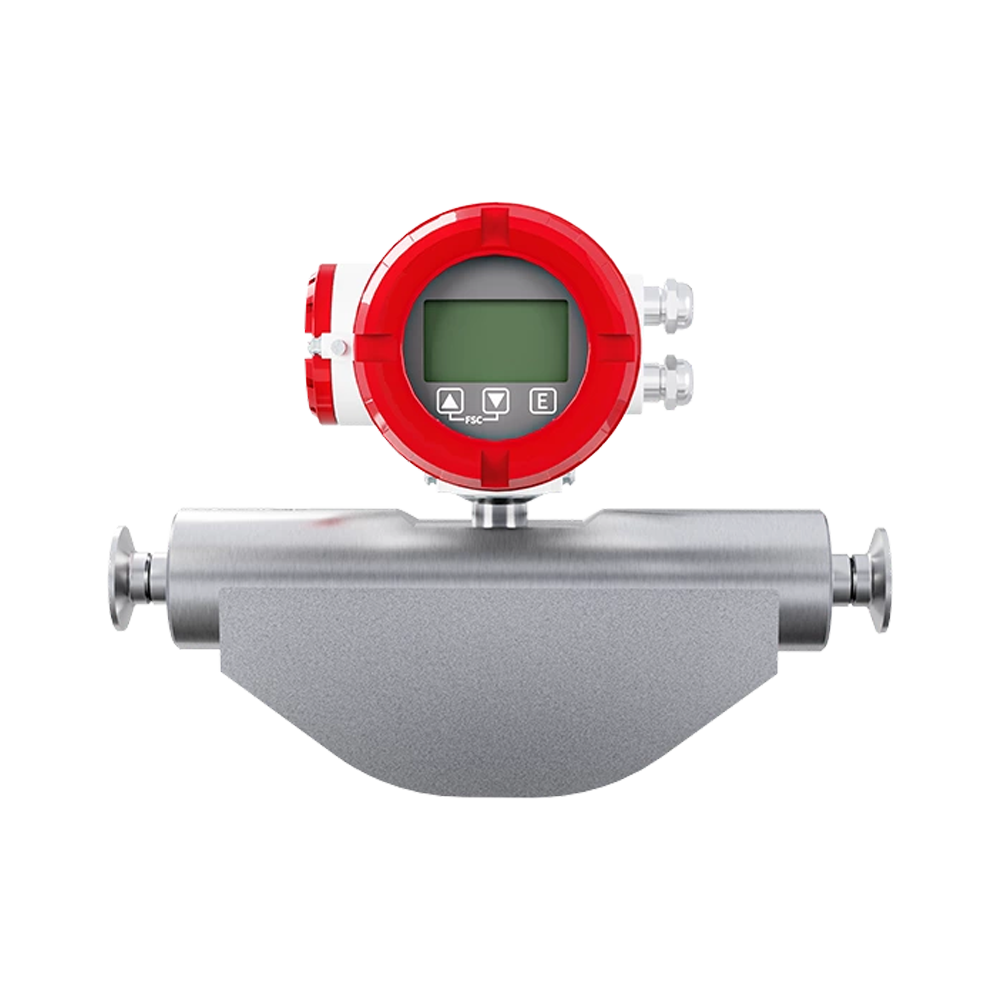

The Coriolis Mass Flow Meter is an advanced flow measurement instrument developed based on the Coriolis force principle. It directly measures the mass flow, density, and temperature of fluids in closed pipelines. This meter is widely used in industries such as chemical processing, petroleum, food and beverage, pharmaceuticals, and paper manufacturing.
Ideal for Challenging Media: Suitable for gases, liquids, high-viscosity fluids, slurries and suspensions.
Direct Mass Flow Measurement: Measures mass flow directly using the Coriolis principle, while also providing density and temperature data.
High Accuracy: Available in 0.15, 0.2 and 0.5 accuracy classes for reliable process measurement.
Easy to Install: No upstream or downstream straight pipe sections are required, helping simplify installation.
Wide Temperature Capability: Versions are available for demanding process temperatures ranging from cryogenic applications down to -255°C through to high-temperature applications up to +350°C.
Advanced Communication: Supports 4–20 mA, pulse, RS485, MODBUS and HART communication options for integration into control systems.
