Optical Dissolved Oxygen Sensor DO7010

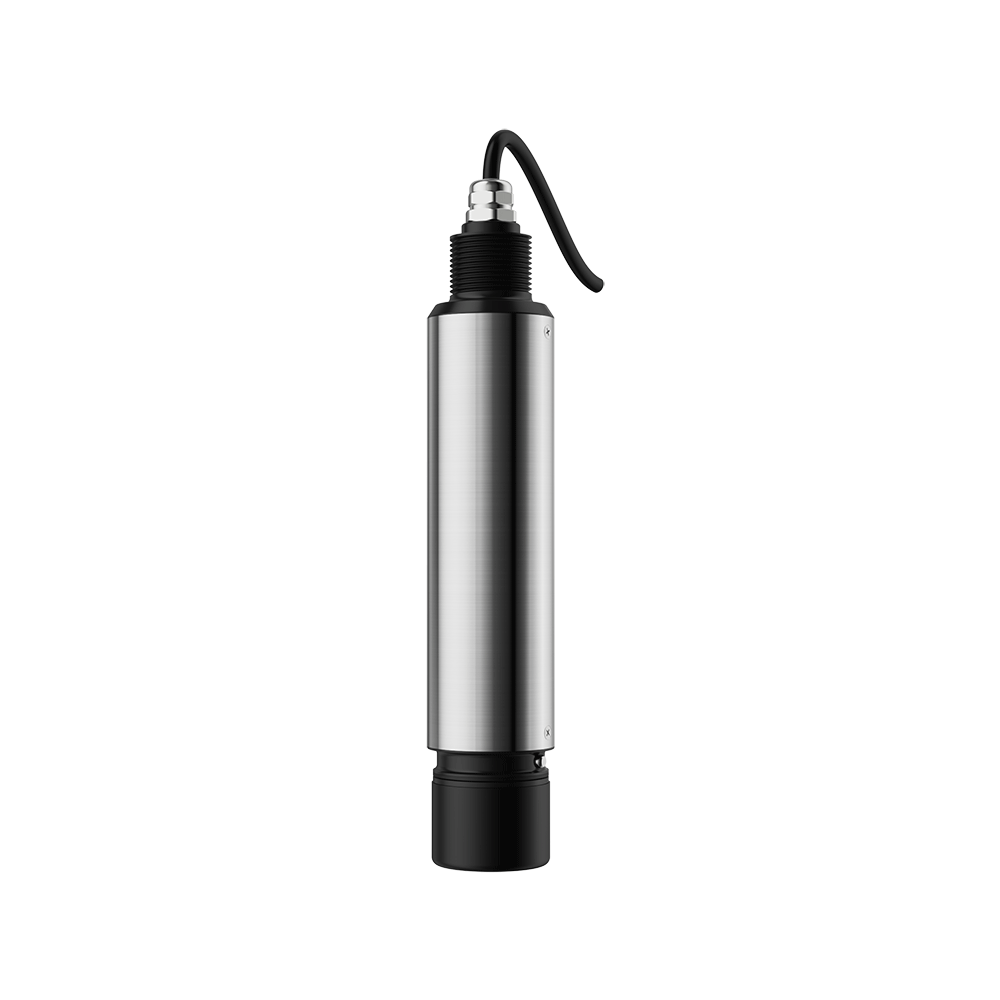

Optical Dissolved Oxygen Sensor DO7010

TPSUP-DO-7010

SUP-DO7012 Dissolved Oxygen Sensor | Optical RS485 Modbus | Supmea

Product Description

SUP-DO7010 Optical type dissolved oxygen sensor, an intelligent online chemical analyser. The cap of the sensor is coated with a luminescent material. Blue light from an LED illuminates the luminescent chemical. The luminescent chemical instantly becomes excited and releases red light. The time and intensity of red light are inversely proportional to the concentration of oxygen molecules, So the concentration of oxygen molecules is calculated.

Download Data SheetGet a Quote

Technical Specifications

Part Number:

TPSUP-DO-7010

Product Type:

Sensor

Pressure Type:

Pressure Range:

0.3MPa

Output Type:

A:RS485

Process Connection:

Electrical Connection:

ZY:Cable Connector

Body Material:

RA:316LSS，R1 Thread

Size:

LED Voltage:

Cable Length:

10:10m

Seal Type:

Temperature:

0 - 45 ℃

Accuracy:

Resolution:±3%or±0.3mg/L, Temp: ±0.5℃

Voltage:

Current:

Power Supply:

B:12VDC

Installation Type:

Diameter:

Power Supply:

B:12VDC

Mounting Type:

Measurement Range:

0 - 20 mg/L

Blind Zone:

Display:

Humidity Range:

Ingres Protection:

IP68/NEMA6P

Current:
