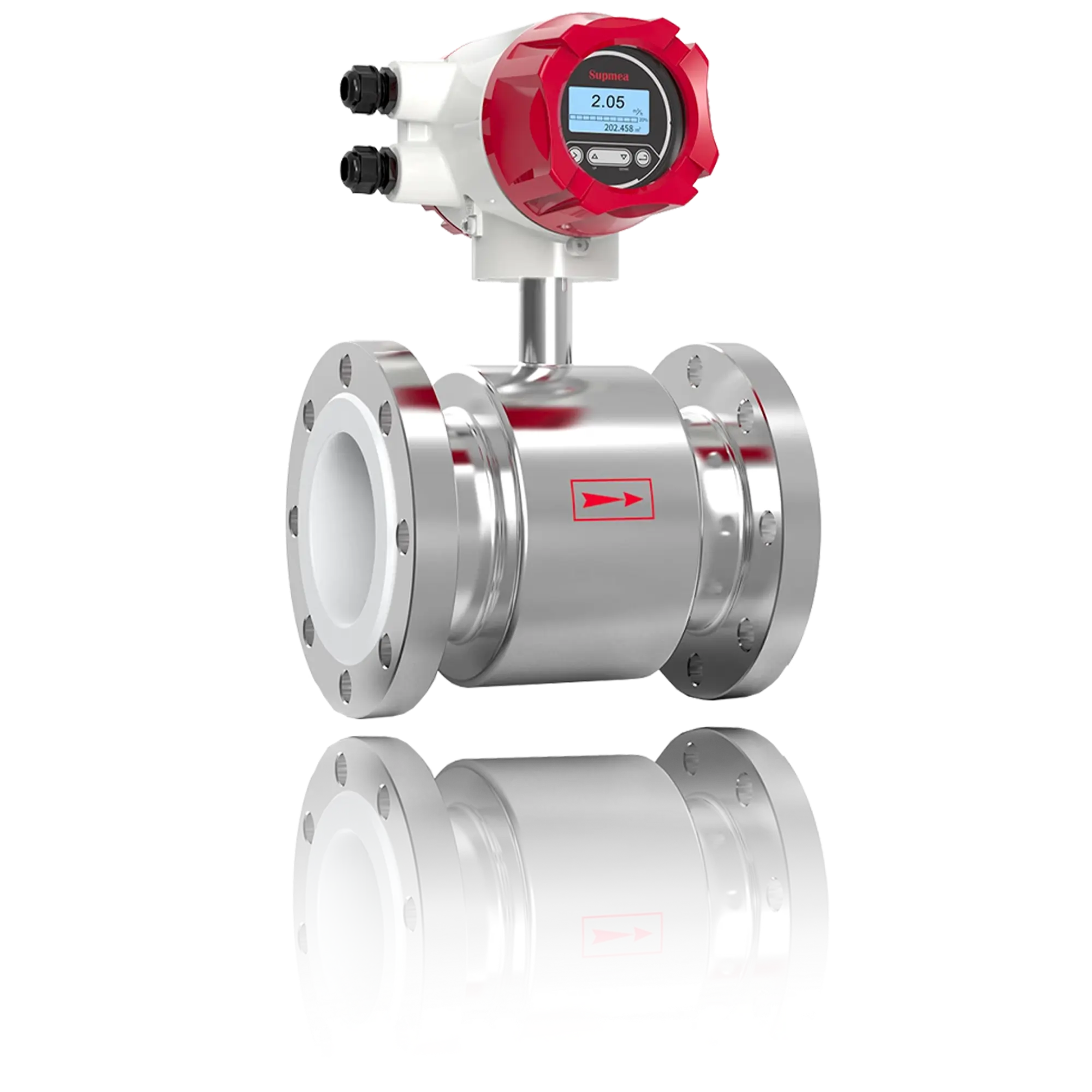

Supmea A100 Electromagnetic Flow Meter
Reliable flow measurement for water, cooling and industrial process applications.
The Supmea A100 is designed for accurate flow measurement of conductive liquids across a wide range of industrial applications.
With no moving parts, flexible communication options and integrated or remote transmitter configurations, it provides a reliable and adaptable solution for flow monitoring.
DN10 – DN3000
Standard Size Range
± 0.5%
Standard Accuracy
No Moving Parts
No Pressure Loss
Multiple Outputs
4–20mA / RS485 / HART
Reliable Electromagnetic Flow Measurement
The A100 measures the flow of conductive liquids using electromagnetic technology, with no moving parts in the flow path. This helps minimise pressure loss and mechanical wear while providing accurate, repeatable flow measurement.
Accurate Flow Measurement
Standard accuracy of ± 0.5% of measured value, with higher accuracy available on selected sizes and configurations.
Minimal Pressure Loss
With no moving components obstructing the flow path, the A100 provides virtually no pressure loss and requires little mechanical maintenance.
Flexible Installation
Choose between integrated and remote transmitter configurations depending on the installation and accessibility of the measurement point.
Monitoring & Diagnostics
Forward and reverse flow measurement, totalisation and empty pipe detection provide useful information for ongoing process monitoring.
Explore our full flow meter range, including remote, stainless steel and sanitary electromagnetic flow meters.

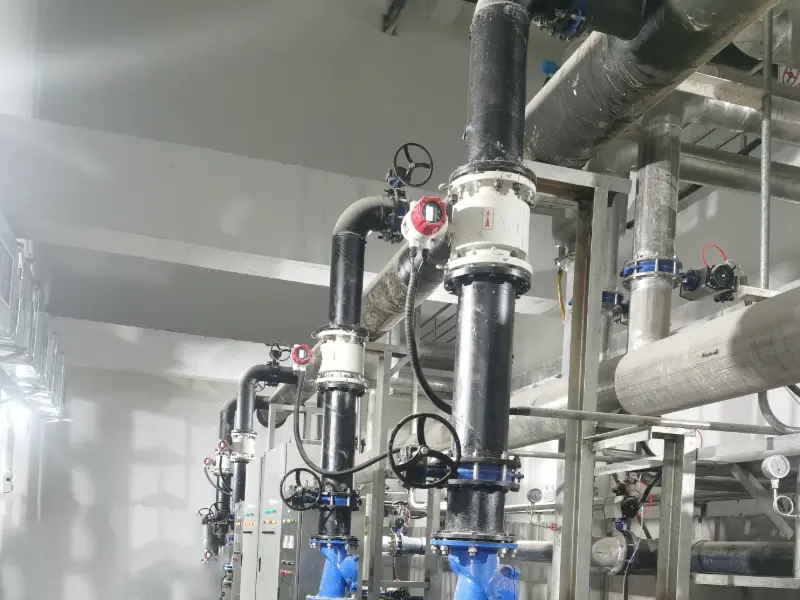

HVAC & Chilled Water Systems
Reliable flow measurement for chilled water and compatible conductive water/glycol systems, with minimal pressure loss.

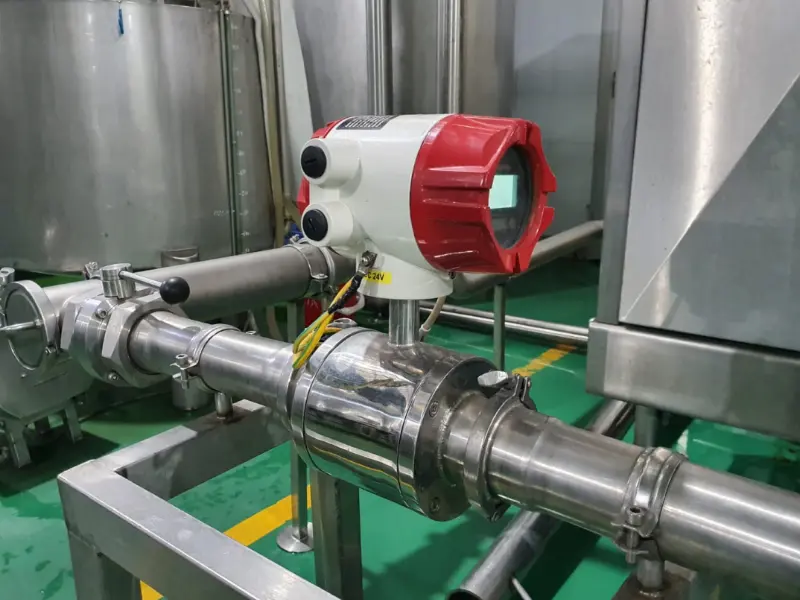

Industrial Process Systems
Accurate flow monitoring for conductive liquids across industrial process pipework, with flexible configuration options.

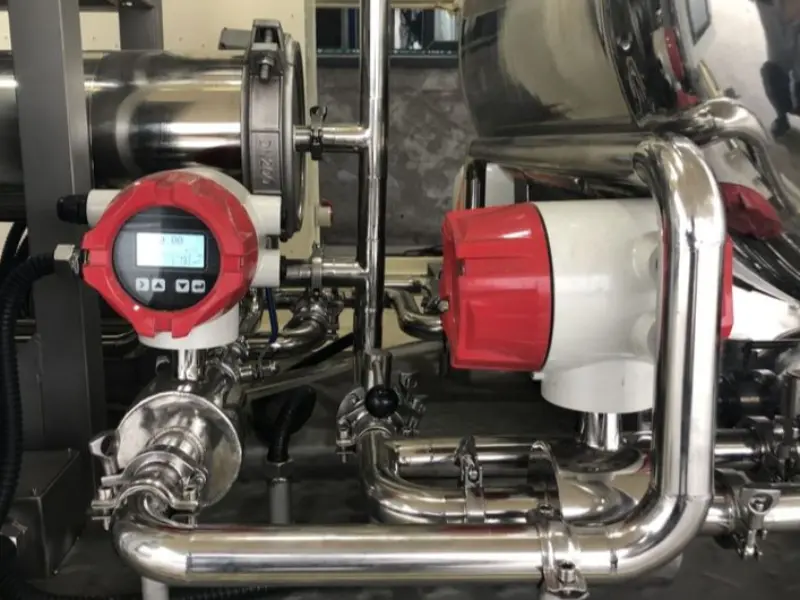

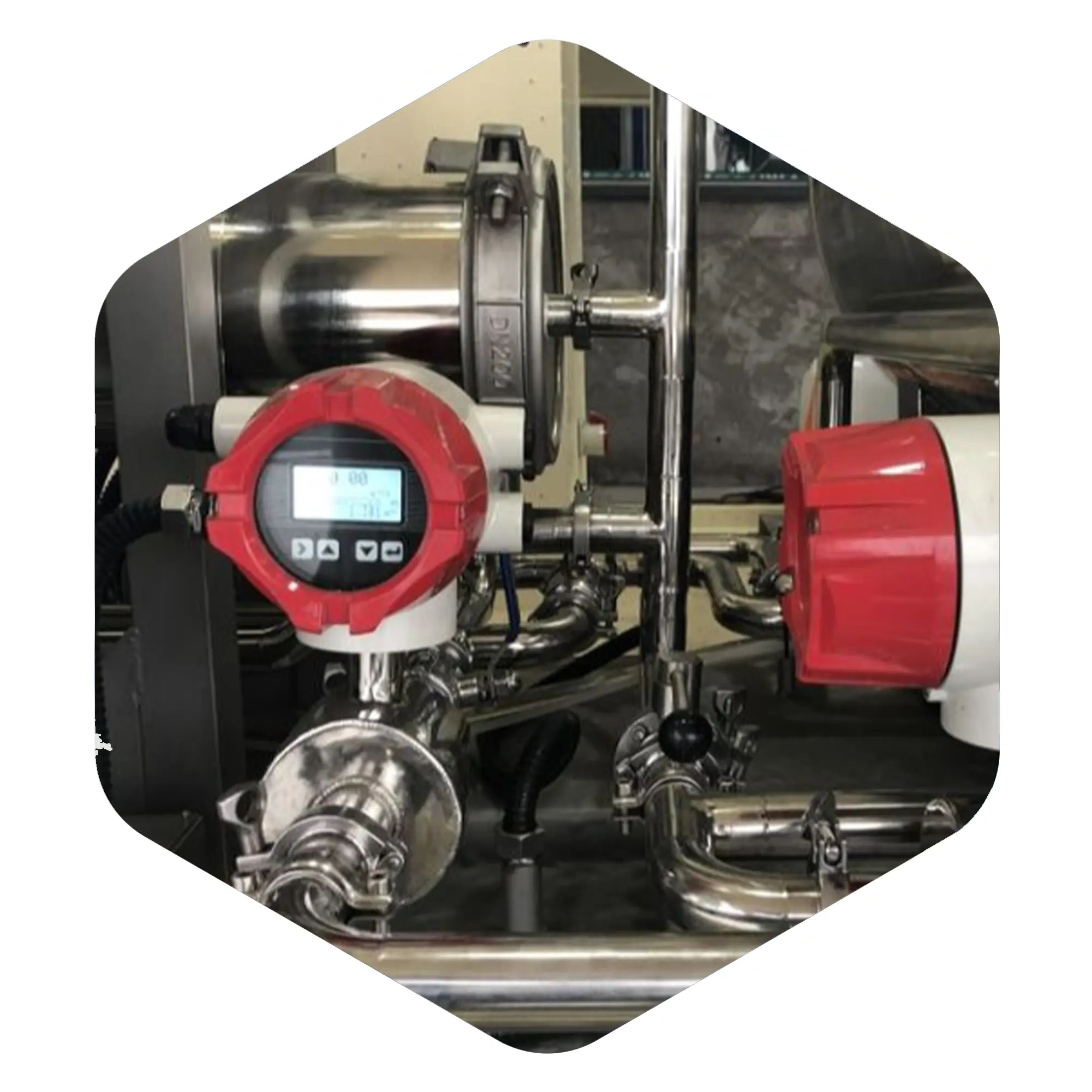

OEM & Integrated Systems
Compact flow measurement for packaged equipment and integrated systems, with integrated and remote transmitter options.
Supmea A100 Technical Specifications
Key specifications are shown below. Final configuration should be selected according to the process media, installation and operating requirements.
Specification
A100
Nominal diameter
DN10–DN1000; larger/custom sizes available on request
Accuracy
± 0.5% of measured value; higher accuracy options on selected sizes
Outputs / communications
4 – 20mA, pulse, RS485 / Modbus and HART
Configuration
Integrated or remote transmitter
Protection
IP65 / IP67 / IP68 configurations
Flow measurement
Forward and reverse measurement with totalisation
Diagnostics
Empty pipe detection and onboard diagnostics
Power
AC and 24VDC options
Liners & electrodes
Multiple materials available depending on the process media
Need Help Selecting the Right Flowmeter?
Every application is different. Talk to the Total Pressure Solutions team about your media, pipe size, installation and communication requirements, and we can help identify the right A100 configuration for your system.
Competitive pricing, reliable delivery and technical application support from TPS.
